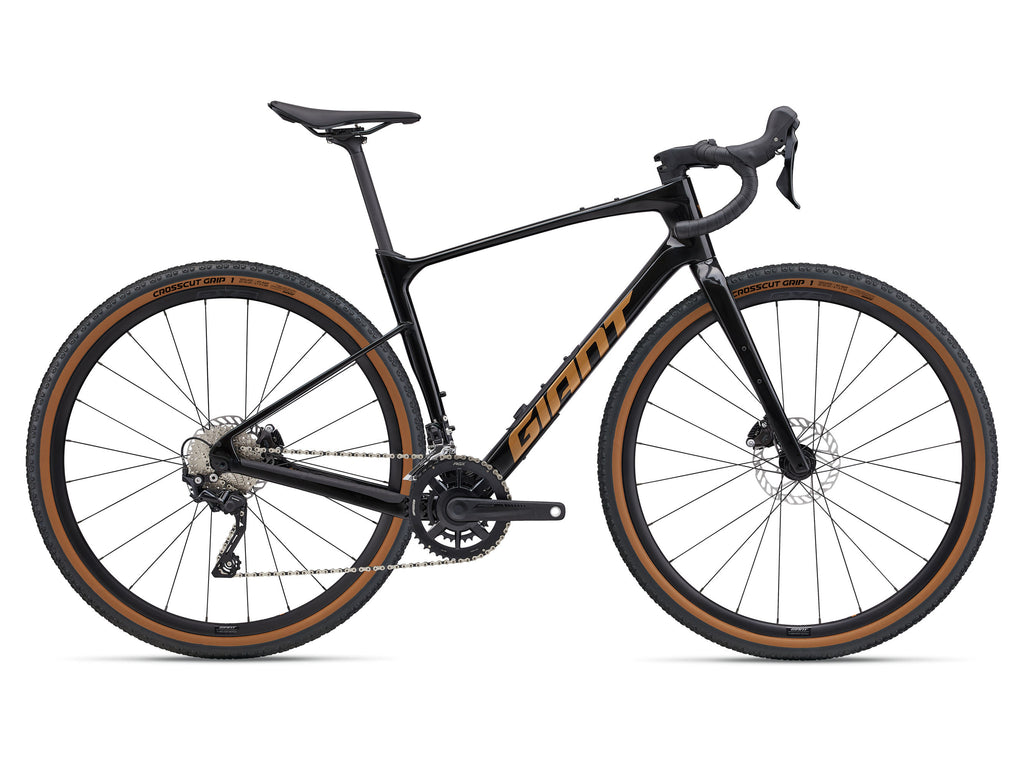

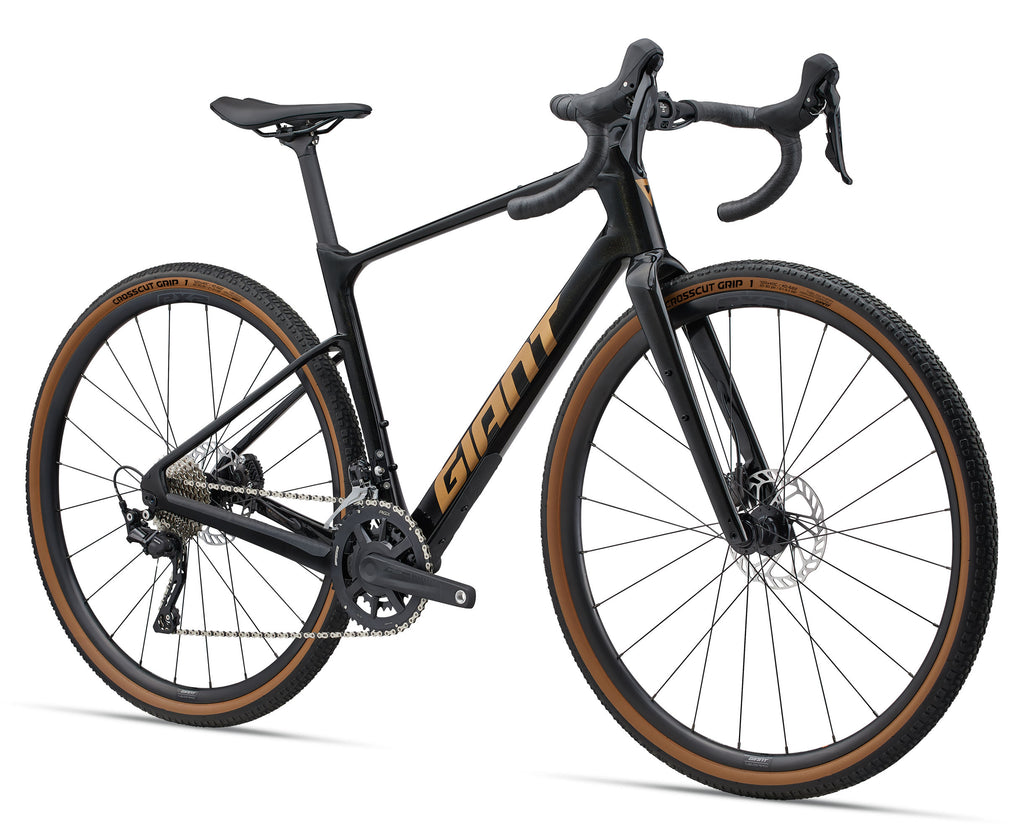

Gravel bike Giant Revolt Advanced 3 28" Panther (2025)

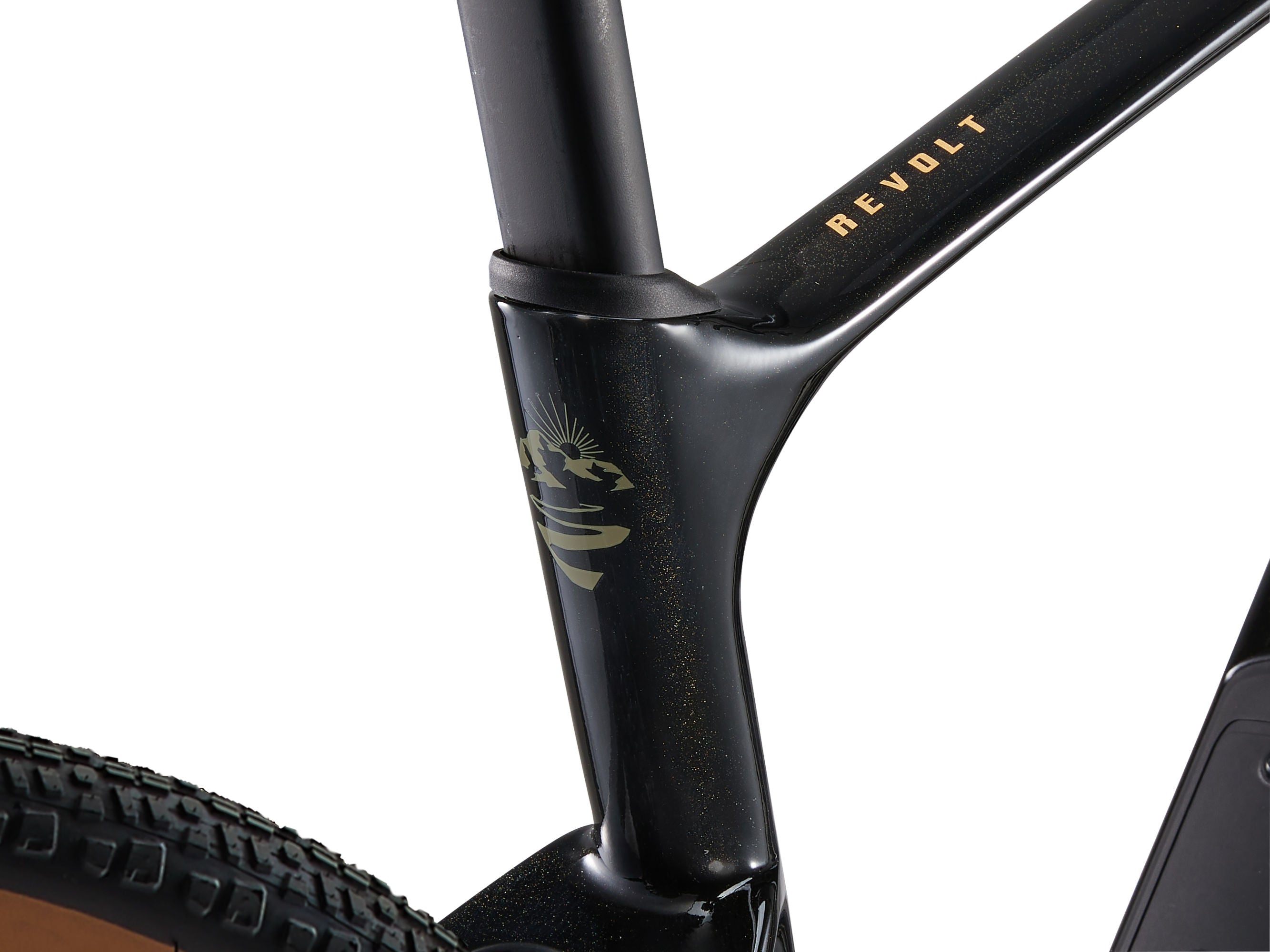

Frame (lifetime warranty) – High-grade composite, 12x142mm thru-axle, disc brakes, flip chip dropouts, down tube storage
Fork – High-grade composite, full composite OverDrive steerer, 12mm thru-axle, disc brakes

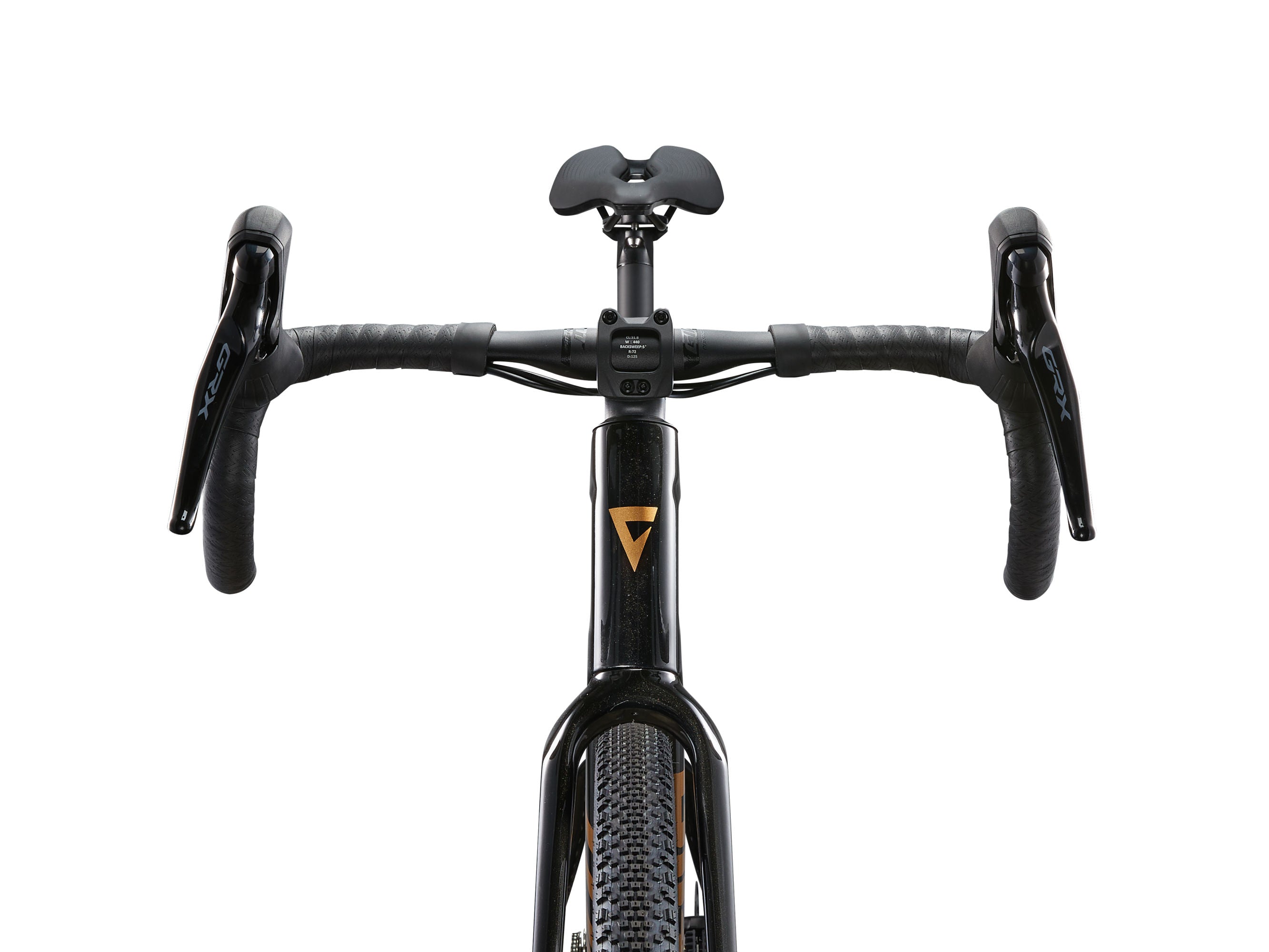

Handlebar – Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
Stem – Giant Contact AeroLight, -10 degrees XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
Seatpost – Giant D-Fuse, composite, 14mm offset
Saddle – Giant Approach

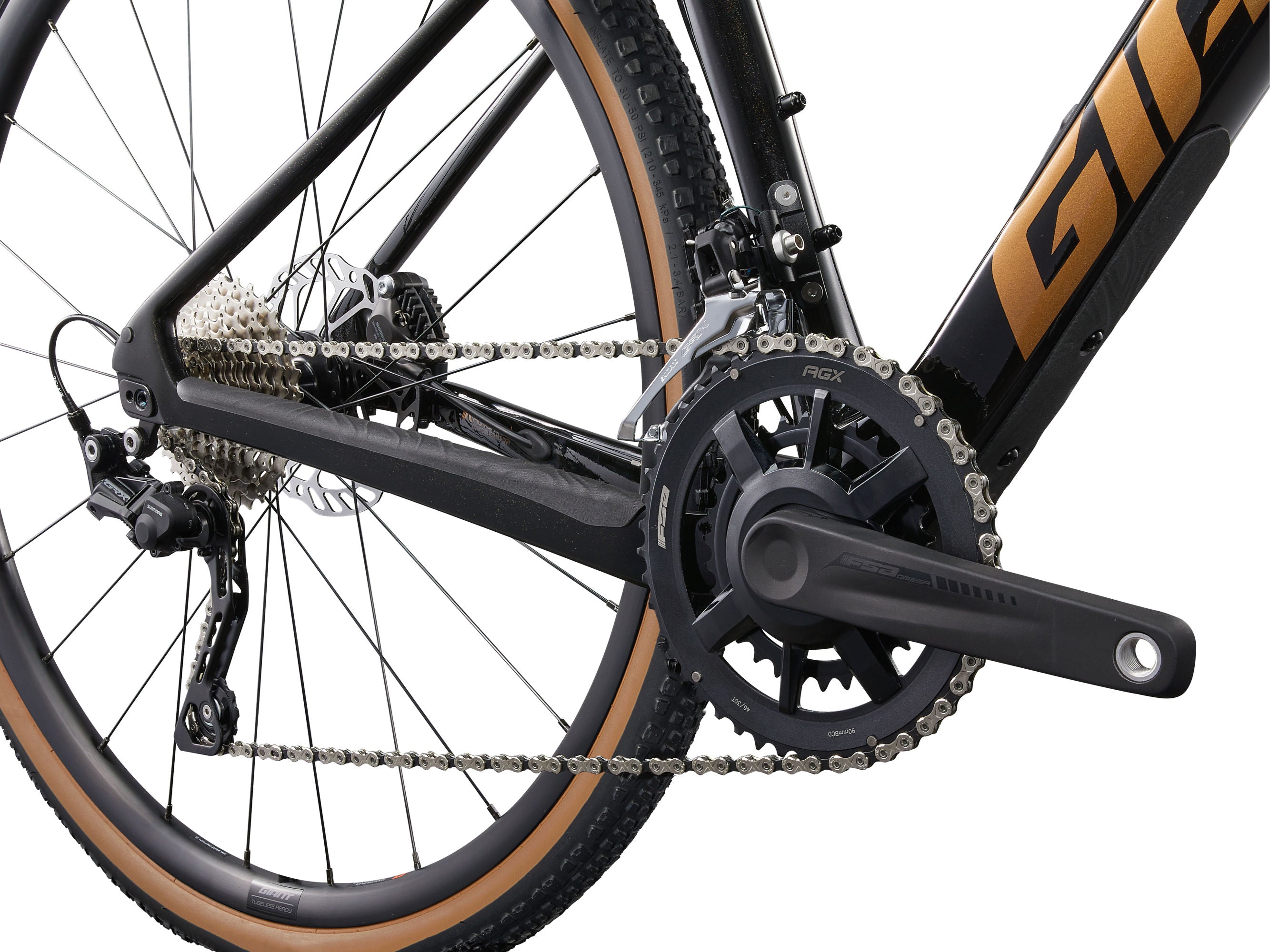

Shifters – Shimano GRX RX-400, 2x10
Front derailleur – Shimano GRX-RX400
Rear derailleur – Shimano GRX-RX400
Brakes – Shimano GRX RX-400 hydraulic, Giant MPH rotors [F]160mm, [R]160mm
Brake levers – Shimano GRX RX-400 hydraulic
Cassette – Shimano Tiagra, 11x34
Chain – KMC X10-1
Crankset – FSA Omega, 30/46 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom bracket – FSA BB-AL86
Rims – Giant P-X2 Disc wheelset, alloy
Hubs – Giant alloy, 12mm thru-axle
Spokes – Sapim
Tires – Giant CrossCut Grip (Tan) or Maxxis Rambler TR (Black), 700x40c, tubeless
Additional equipment – Tubeless ready, maximum tire size in "long" flip chip position 53mm, maximum tire size in "short" flip chip position 45mm, internal frame bag

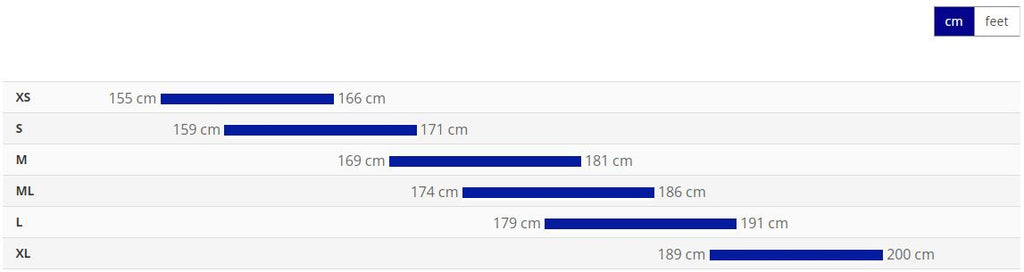

Frame size according to rider height –
