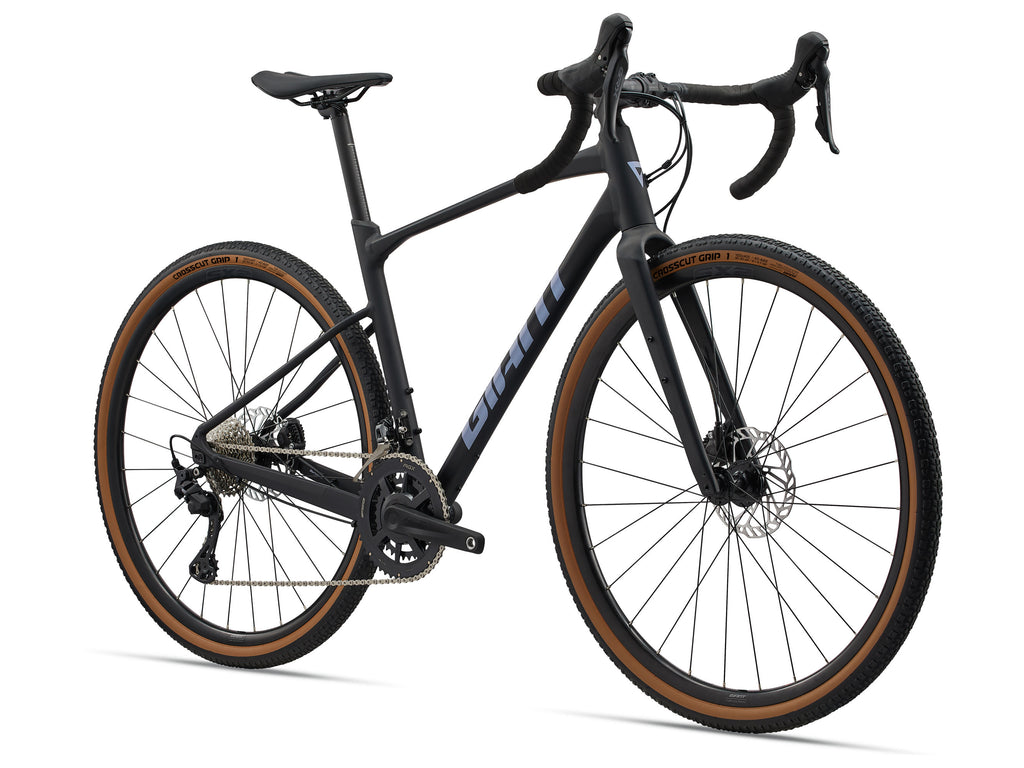

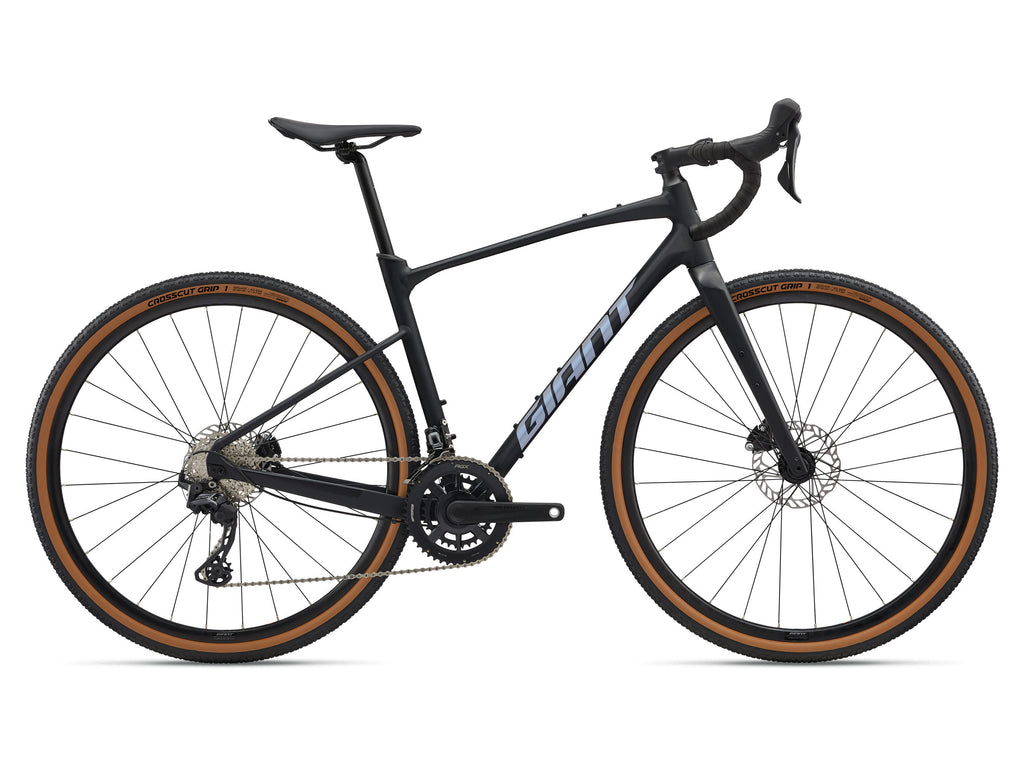

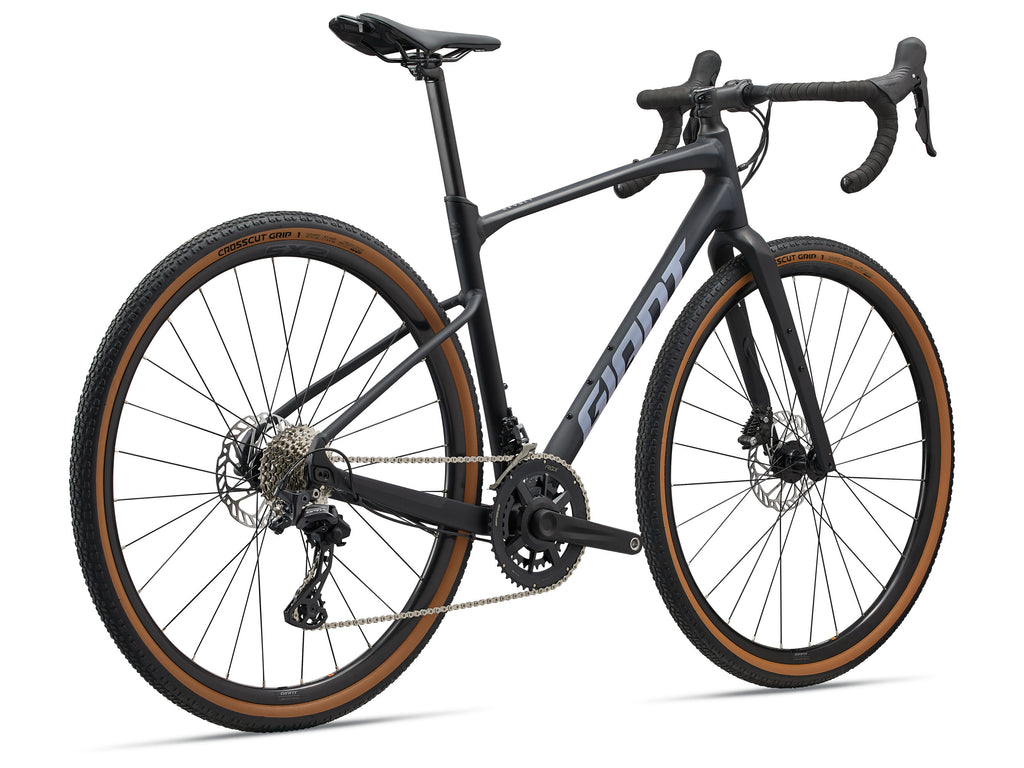

Gravel bike Giant Revolt 0 28" Black/Moonstone (2025)

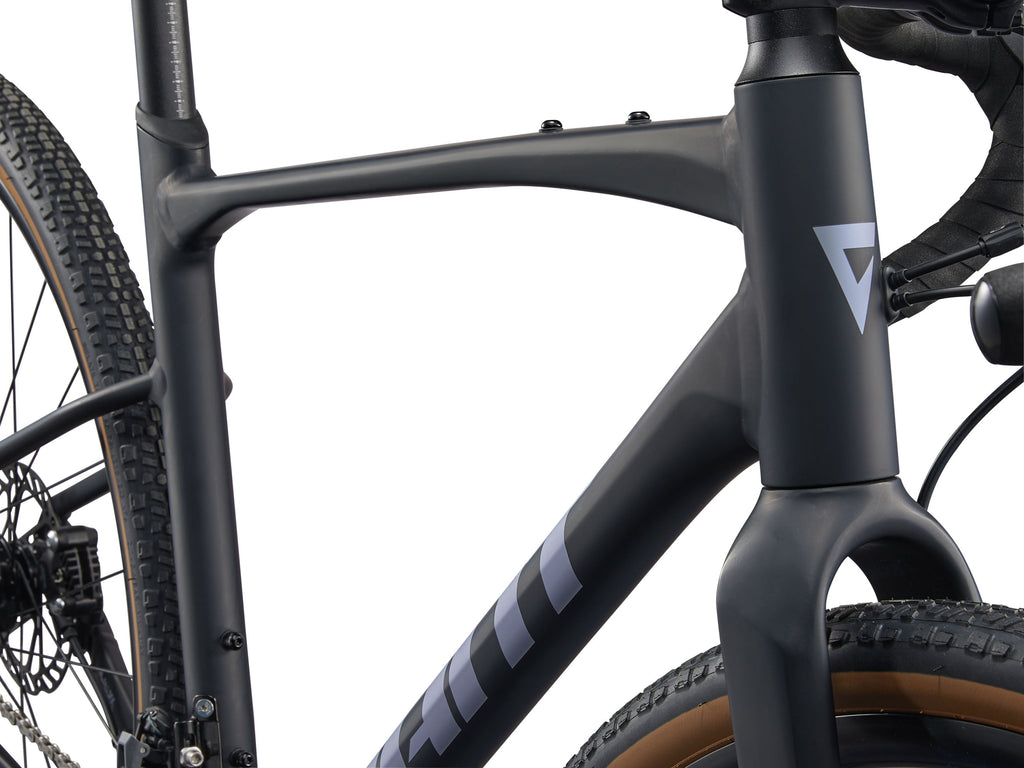

Frame (lifetime warranty) – ALUXX-Grade aluminum, 12x142mm thru-axle, disc, flip chip dropout
Fork – High-grade composite, full composite OverDrive steerer, 12mm thru-axle, disc

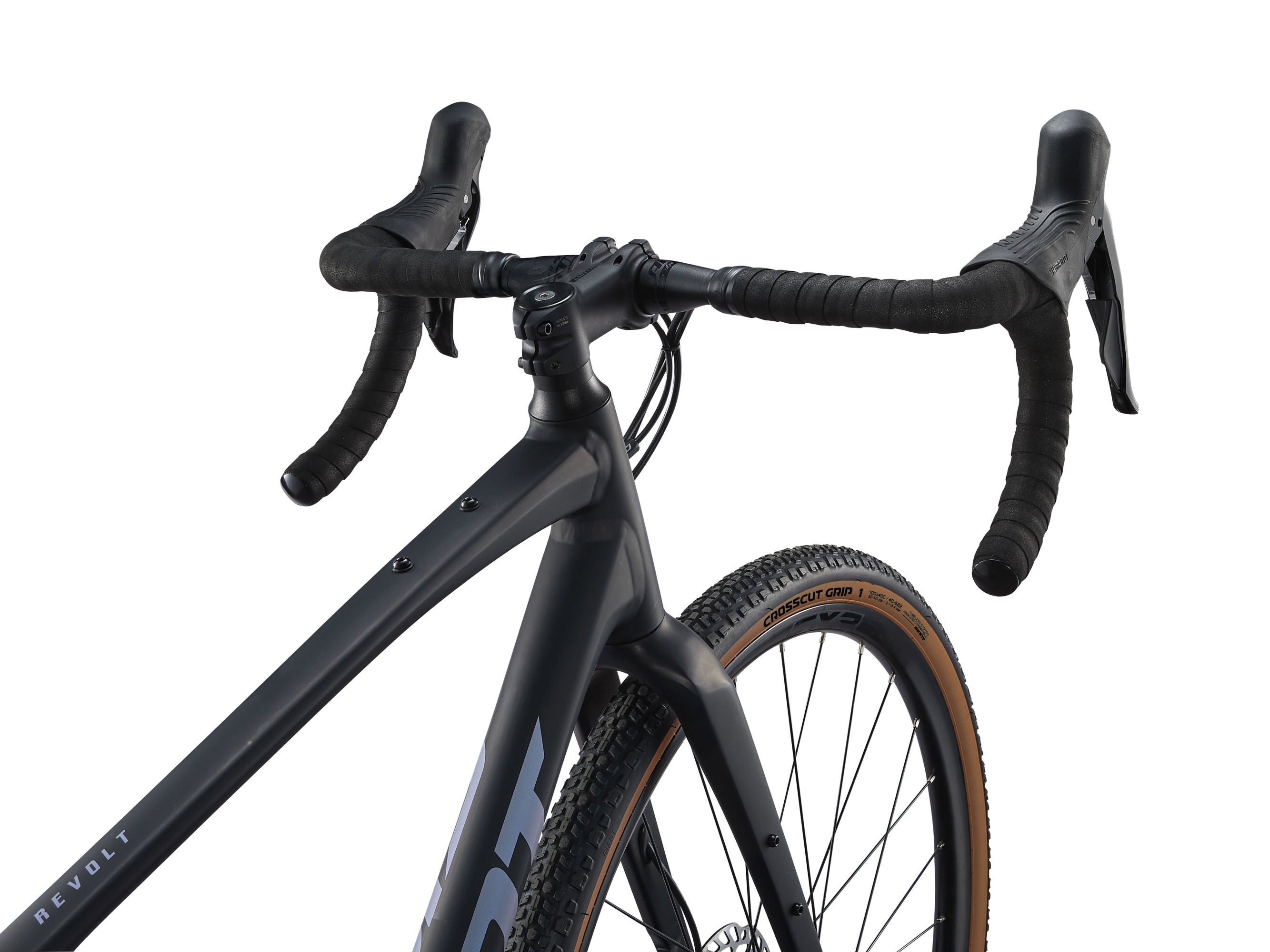

Handlebar – Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, ML:44cm, L:46cm, XL:46cm
Stem – Giant Contact, 8 degrees XS:50mm, S:60mm, M:70mm, ML:80mm, L:80mm, XL:90mm
Seatpost – Giant D-Fuse, aluminum, 14mm offset
Saddle – Giant Approach
Shifters – Shimano GRX RX-610, 2x12
Front derailleur – Shimano GRX RX-820
Rear derailleur – Shimano GRX RX-820
Brakes – Shimano GRX RX-400 hydraulic, Giant MPH rotors [F]160mm, [R]160mm
Brake levers – Shimano GRX RX-610 hydraulic
Cassette – Shimano 105, 11x34
Chain – KMC X12L-1

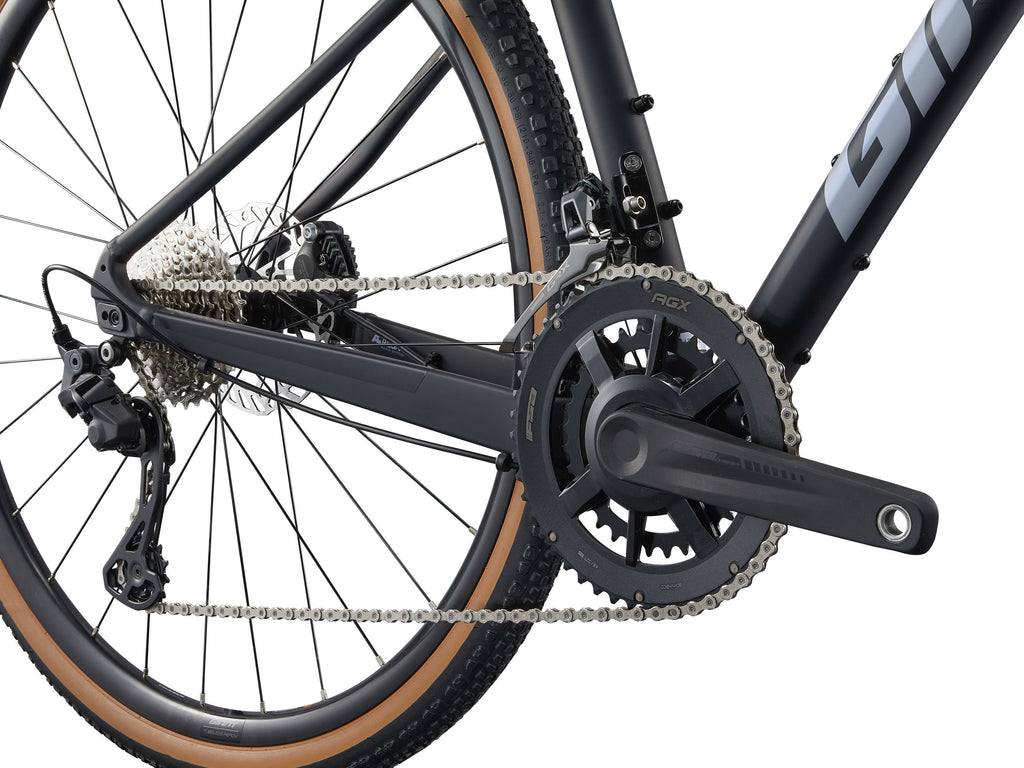

Crankset – FSA Omega Modular AGX+, 32/48 XS:170mm, S:170mm, M:172.5mm, ML:172.5mm, L:175mm, XL:175mm
Bottom bracket – FSA Mega EXO
Rims – Giant S-X2 Disc wheelset, aluminum
Hubs – Giant aluminum, 12mm thru-axle
Spokes – Stainless steel
Tyres – Giant Crosscut Grip TR, 700x40c, tubeless
Additional equipment – tubeless ready, maximum tire size in "long" flip chip position 53mm, maximum tire size in "short" flip chip position 45mm

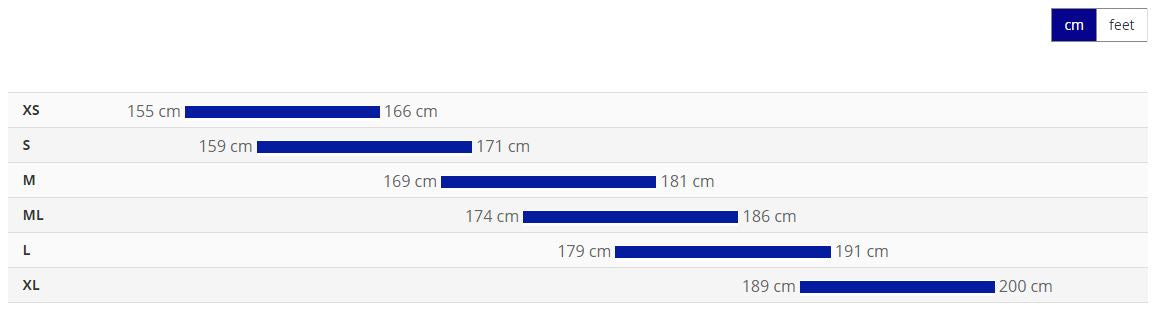

Frame size in relation to rider height –
