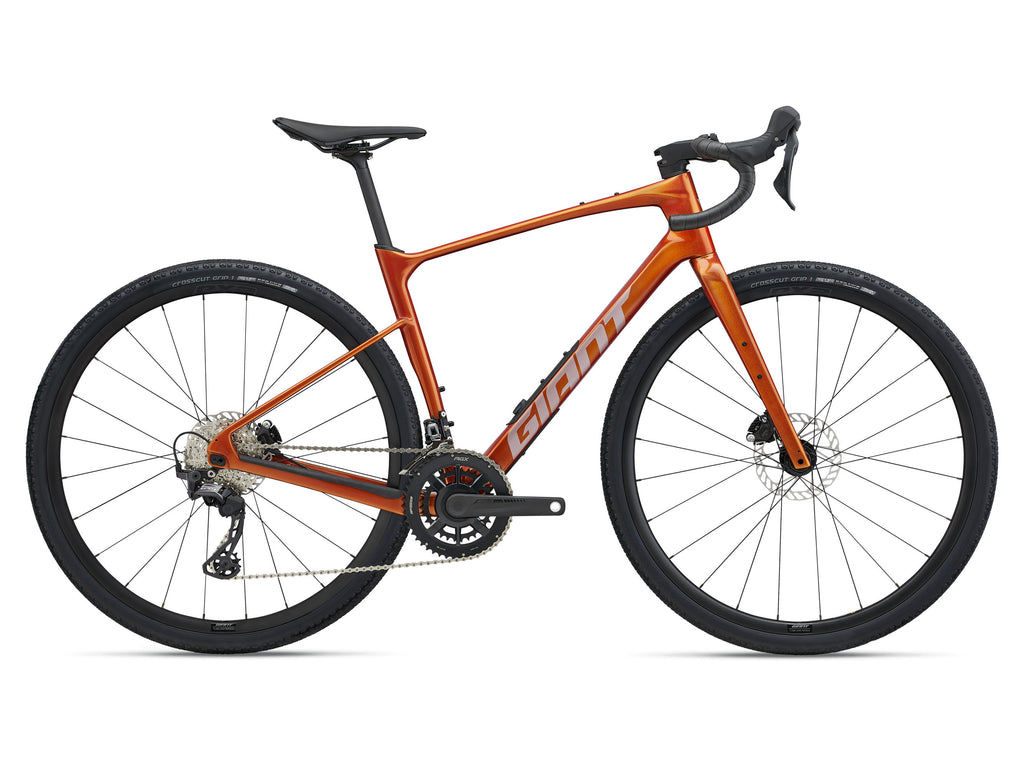

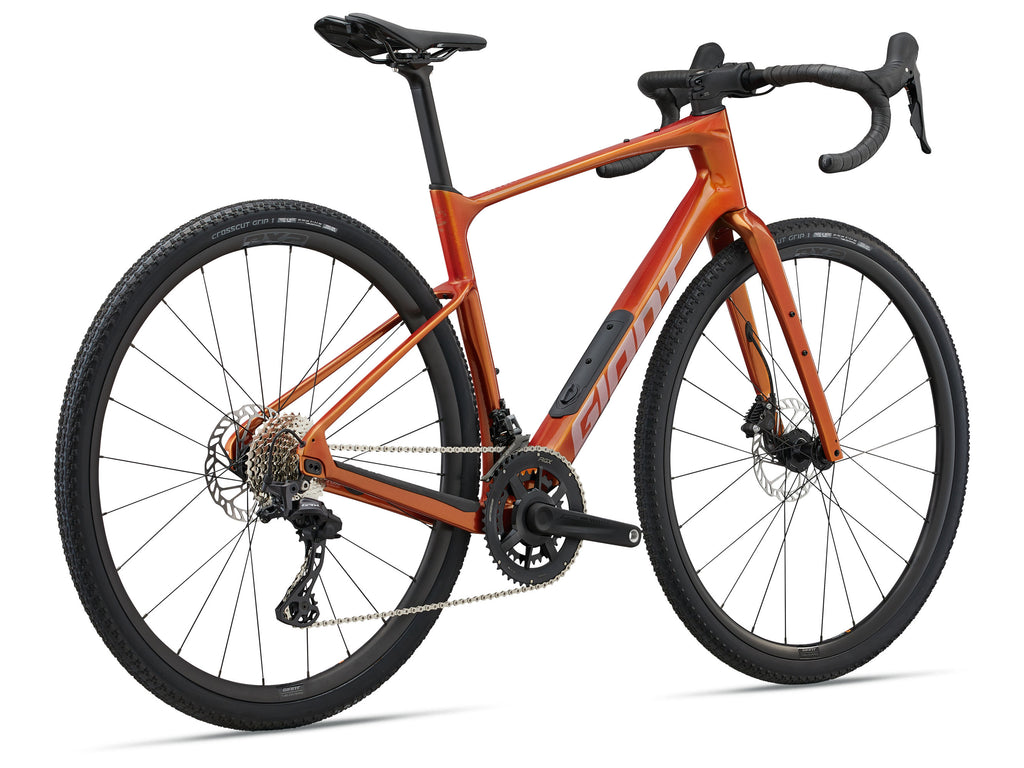

Gravel bike Giant Revolt Advanced 2 28" Solar Flare (2025)

Frame (lifetime warranty) – High-grade composite, 12x142mm thru-axle, disc, interchangeable rear dropout mounts, internal frame storage
Fork – High-grade composite, full composite OverDrive steerer, 12mm thru-axle, disc
Handlebar – Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
Stem – Giant Contact AeroLight, -10 degrees XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
Seatpost – Giant D-Fuse, composite, 14mm offset
Saddle – Giant Grit
Shifter Levers – Shimano GRX RX-610, 2x12
Front Derailleur – Shimano GRX RX-820
Rear Derailleur – Shimano GRX RX-820
Brakes – Shimano GRX RX-410 hydraulic, Giant MPH rotors [F]160mm, [R]160mm
Brake Levers – Shimano GRX RX-610 hydraulic
Cassette – Shimano CS-HG710, 12-speed, 11x36
Chain – KMC X12L-1
Crankset – FSA Omega Modular AGX+, 32/48 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom Bracket – FSA BB-AL86, press fit
Rims – Giant P-X2 Disc set, aluminum
Hubs – Giant aluminum, 12mm thru-axle
Spokes – Sapim
Tires – Giant Crosscut Grip, 700x45c, tubeless
Additional Equipment – ready for tubeless use, maximum tire size in "long" flip chip position 53mm, maximum tire size in "short" flip chip position 45mm, internal frame bag

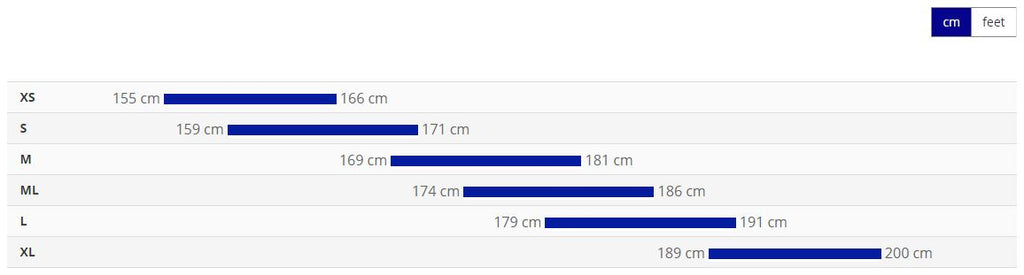

Frame size in relation to rider height –
