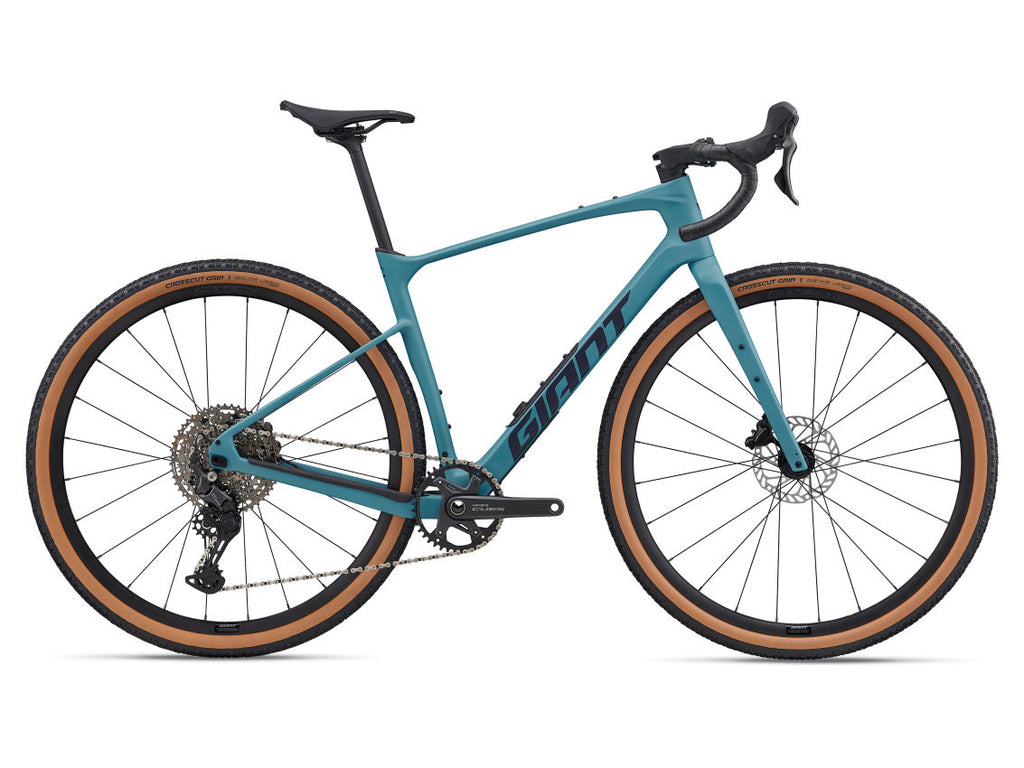

Gravel bike Giant Revolt Advanced 3 28" Aquarium (2026)

Frame (lifetime warranty) – Advanced-grade composite, 12x142 mm thru-axle, disc brakes, flip chip dropouts, downtube storage
Fork – Advanced-grade composite, full composite OverDrive steerer tube, 12 mm thru-axle, disc brakes
Handlebar – Giant Contact XR D-Fuse, 31.8 mm XS:42 cm, S:42 cm, M:44 cm, M/L:44 cm, L:46 cm, XL:46 cm
Stem – Giant Contact AeroLight, -10 degrees XS:50 mm, S:60 mm, M:70 mm, M/L:80 mm, L:80 mm, XL:90 mm
Seatpost – Giant D-Fuse, composite, 14 mm offset
Saddle – Giant Grit
Shifter Levers – Shimano CUES U6030, 1x11
Front Derailleur – None
Rear Derailleur – Shimano CUES U6000, 11 speeds
Brakes – Shimano CUES U6030 hydraulic, Giant MPH rotors [Front]160 mm, [Rear]160 mm
Brake Levers – Shimano CUES U6030 hydraulic
Cassette – Shimano CS-LG400, 11x50
Chain – KMC X11
Crankset – Shimano FC-U6030-1, 42 teeth XS:170 mm, S:170 mm, M:172.5 mm, M/L:172.5 mm, L:175 mm, XL:175 mm
Bottom Bracket – Shimano, press-fit
Rims – Giant P-X2 Disc rim set, aluminum, tubeless
Hubs – Giant aluminum, 12 mm thru-axle
Spokes – Sapim
Tires – Giant Crosscut Grip, 700x45c, tubeless
Additional Equipment – Tubeless ready, maximum tire width 53 mm in "long" flip chip position, maximum tire width 45 mm in "short" flip chip position, frame-integrated storage bag

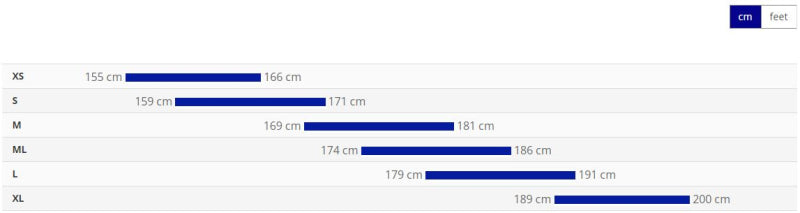

Frame size according to rider height:
