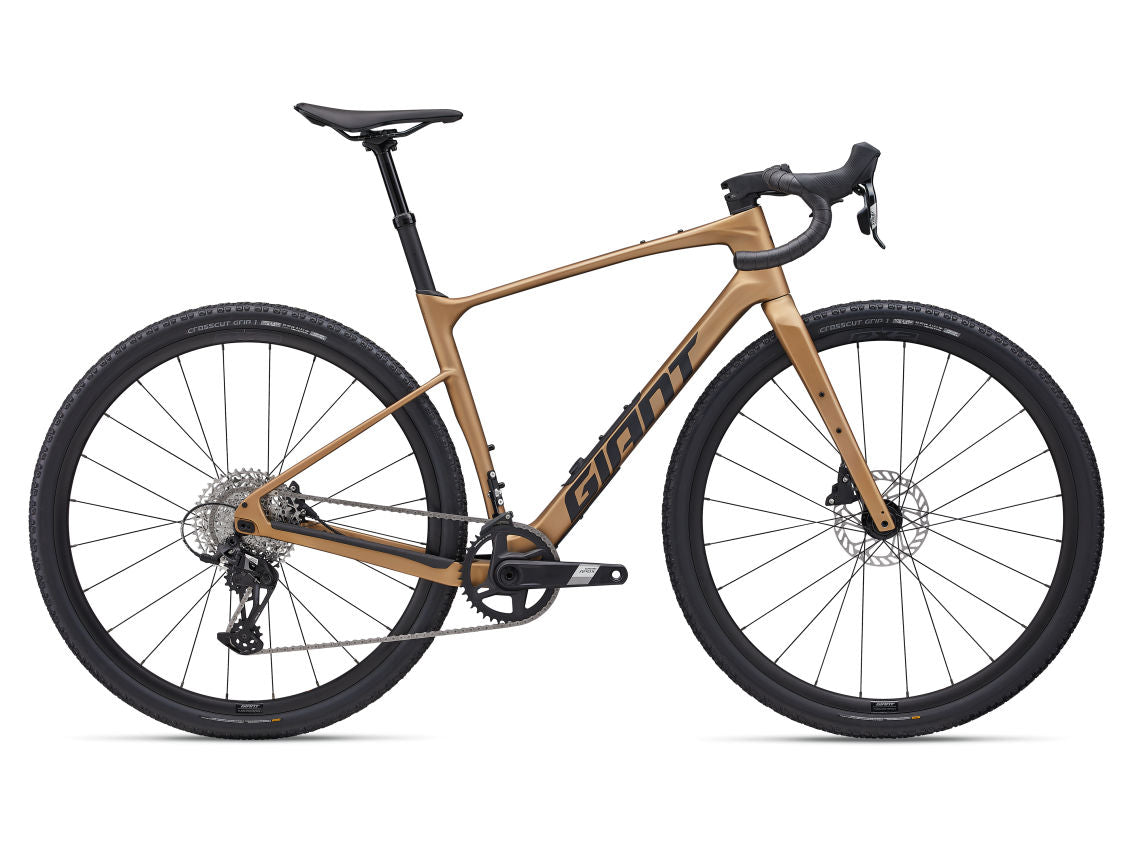

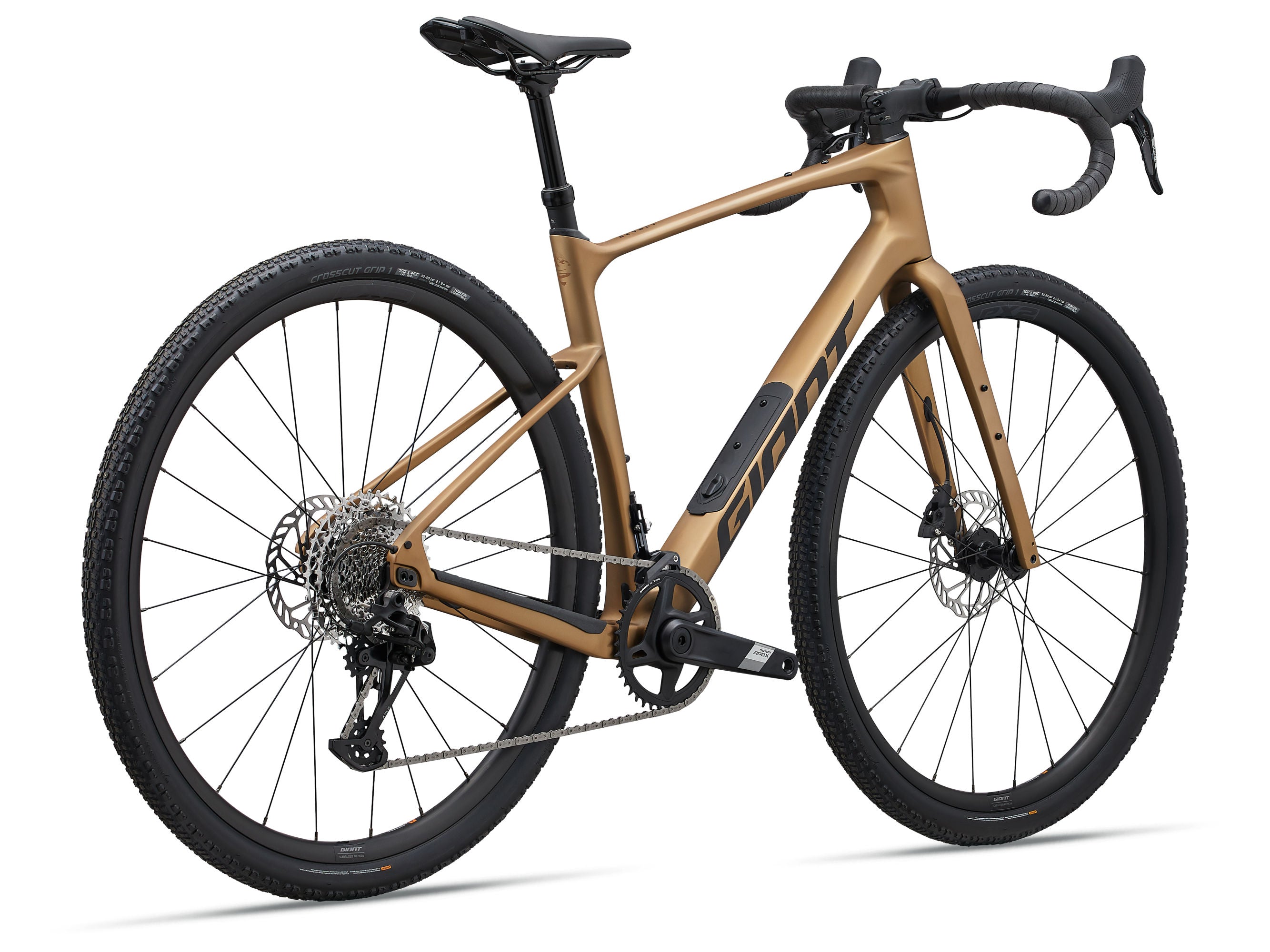

Gravel bike Giant Revolt Advanced 1 28" Steampunk (2025)

Frame (lifetime warranty) – Advanced composite material, 12x142mm thru axle, disc, adjustable dropout, frame lower storage compartment
Fork – Advanced composite material, full composite OverDrive steerer, 12mm thru axle, disc
Handlebar – Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
Stem – Giant Contact AeroLight, -10 degrees XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
Seatpost – Post Moderne, with remote, 30.9mm, 30mm suspension XS:295mm, S:345mm, M:345mm, M/L:345mm, L:395mm, XL:395mm
Saddle – Giant Grit
Shifter levers – SRAM Apex 1, 1x12
Rear derailleur – SRAM Apex XPLR
Brakes – SRAM Apex hydraulic, Giant MPH rotors [F]160mm, [R]160mm
Brake levers – SRAM Rival 1, left lever with remote switch
Cassette – SRAM PG-1231, 12 speed, 11x44
Chain – SRAM Apex D1
Crankset – SRAM Apex 1 Wide DUB, 40t XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom bracket – SRAM DUB, press fit
Rims – Giant P-X2 Disc wheelset, aluminum
Hubs – Giant aluminum, 12mm thru axle
Spokes – Sapim
Tires – Giant Crosscut Grip, 700x45c, tubeless
Additional equipment – Giant 1x chain guide, tubeless ready, maximum tire size in "long" flip chip position 53mm, maximum tire size in "short" flip chip position 45mm, internal frame storage bag

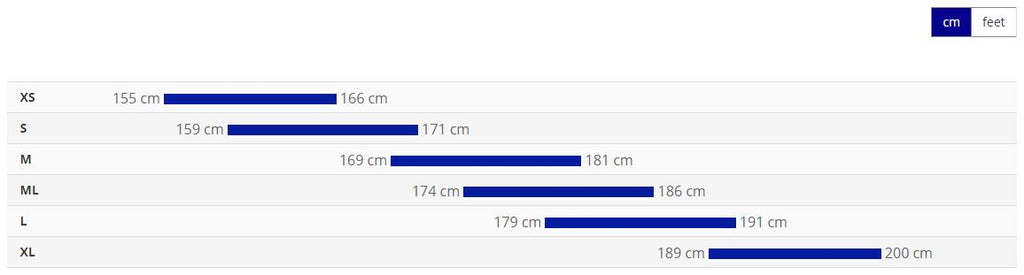

Frame size in relation to rider height –
