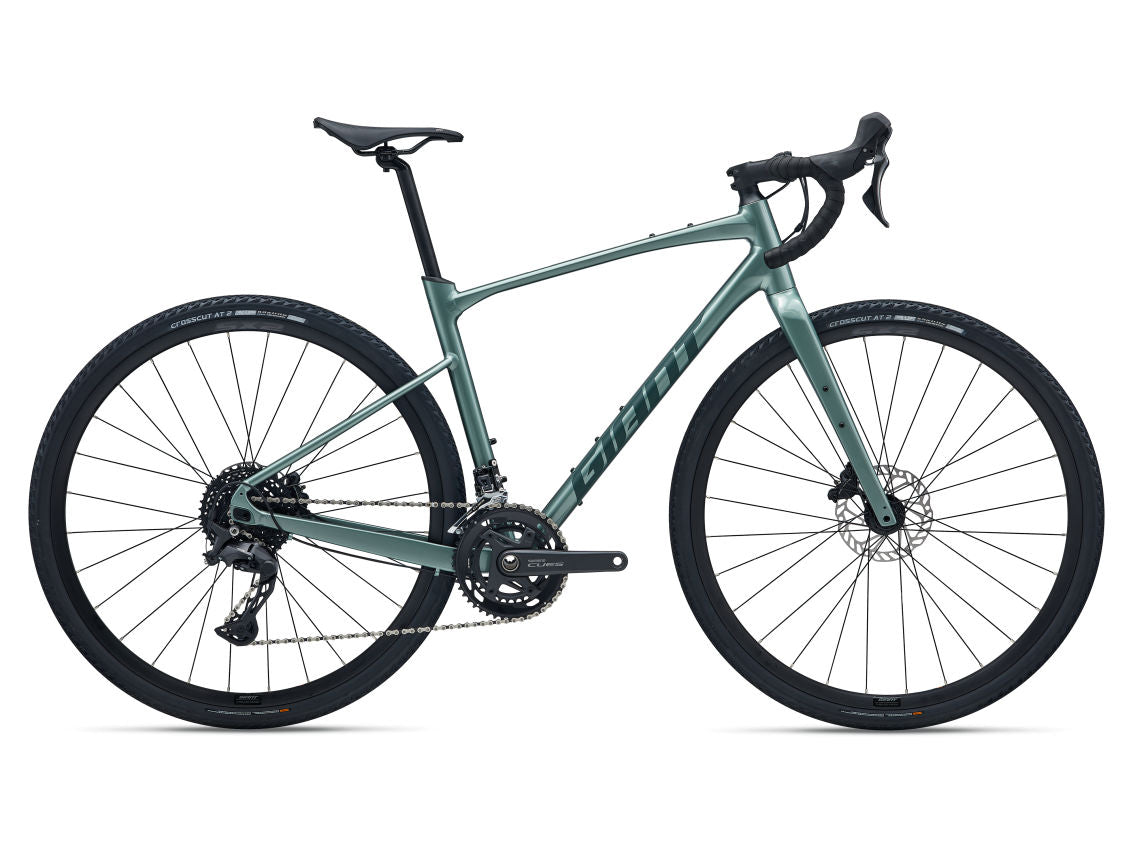

Gravel bike Giant Revolt 1 28" Alpine Green (2026)

Frame (lifetime warranty) – ALUXX-Grade aluminum, 12x142 mm thru-axle, disc brakes, flip chip dropouts
Fork – Advanced-grade composite, full composite OverDrive steerer tube, 12 mm thru-axle, disc brakes
Handlebar – Giant Contact XR D-Fuse, 31.8 mm XS: 42 cm, S: 42 cm, M: 44 cm, M/L: 44 cm, L: 46 cm, XL: 46 cm
Stem – Giant Contact, 8° XS: 50 mm, S: 60 mm, M: 70 mm, M/L: 80 mm, L: 80 mm, XL: 90 mm
Seatpost – Giant D-Fuse, aluminum, 14 mm offset
Saddle – Giant Grit
Shifter levers – Shimano CUES U6030, 2x10
Front derailleur – Shimano CUES U6030
Rear derailleur – Shimano CUES U6030, 10-speed
Brakes – Shimano CUES U6030 hydraulic, Giant MPH rotors [Front] 160 mm, [Rear] 160 mm
Brake levers – Shimano CUES U6030
Cassette – Shimano CS-LG300, 11x39
Chain – KMC X11 with Missing Link
Crankset – Shimano FC-U6030-2, 32/46 XS: 170 mm, S: 170 mm, M: 172.5 mm, M/L: 172.5 mm, L: 175 mm, XL: 175 mm
Bottom bracket – Shimano, threaded
Rims – Giant S-X2 Disc wheelset, aluminum
Hubs – Giant aluminum, 12 mm thru-axle
Spokes – Stainless steel
Tires – Giant CrossCut AT 2, 700x38c, tubeless
Additional equipment – tubeless ready, max tire width 53 mm in "long" flip chip position, max tire width 45 mm in "short" flip chip position

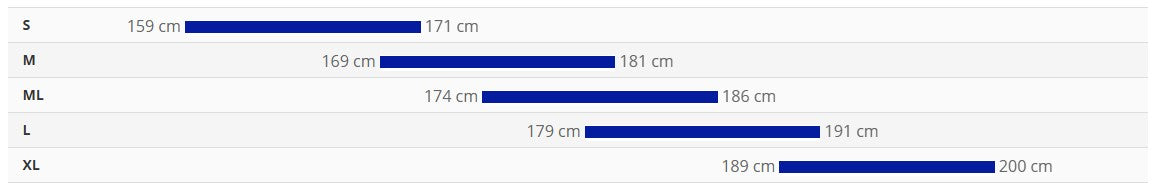

Frame size according to rider height:
