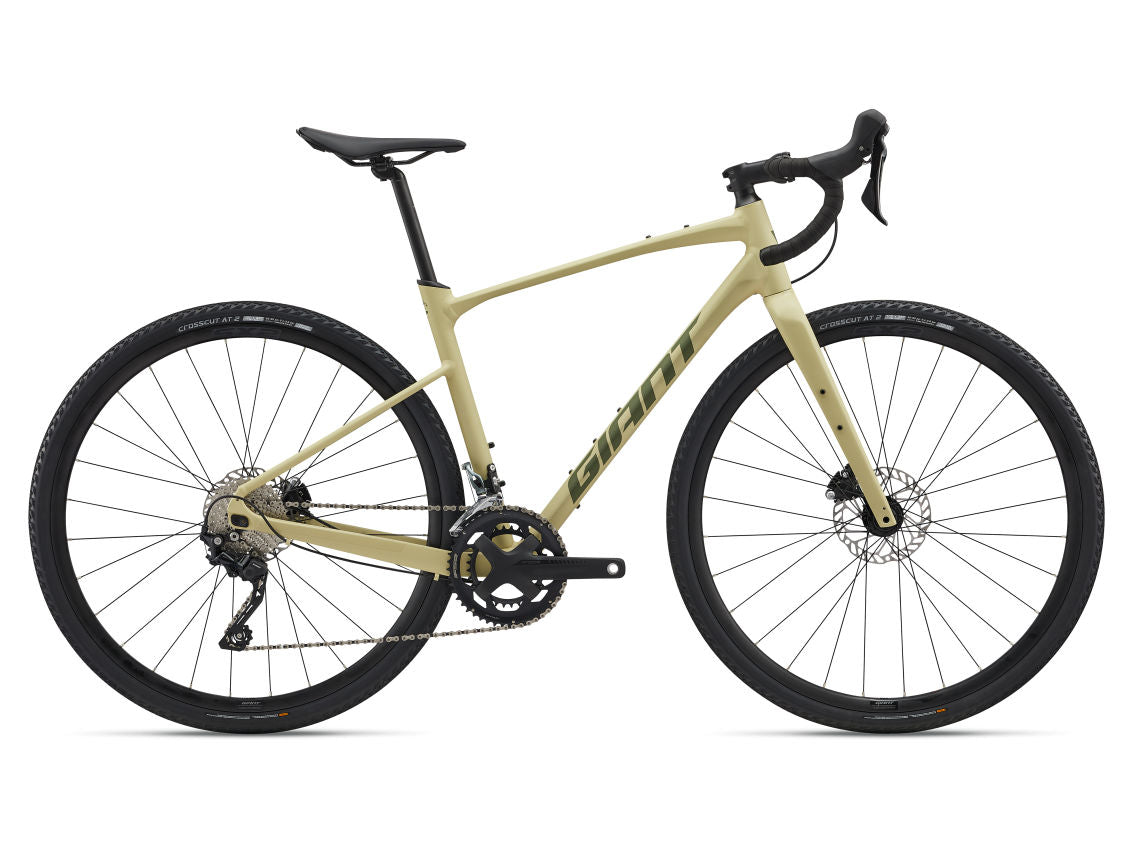

Gravel bike Giant Revolt 1 28" Pale Olive (2025)

Frame (lifetime warranty) – ALUXX-Grade aluminum, 12x142mm thru axle, disc, replaceable flip chip dropout
Fork – High-end composite, full composite OverDrive steerer, 12mm thru axle, disc
Handlebar – Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
Stem – Giant Contact, 8 degrees XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
Seatpost – Giant D-Fuse, aluminum, 14mm offset
Saddle – Giant Approach
Shifters – Shimano GRX RX-400, 2x10
Front derailleur – Shimano Tiagra
Rear derailleur – Shimano GRX RX-400
Brakes – Shimano GRX RX-400 hydraulic, Giant MPH rotors [F]160mm, [R]160mm
Brake levers – Shimano GRX RX-400 hydraulic
Cassette – Shimano HG500, 11x34
Chain – KMC X10 with Missing Link
Crankset – FSA Omega Adventure, 32/48 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom bracket – FSA Mega EXO
Rims – Giant S-X2 Disc wheelset, aluminum
Hubs – Giant aluminum, 12mm thru axle
Spokes – Stainless steel
Tires – Giant CrossCut AT 2, 700x38c, tubeless
Additional equipment – tubeless ready, maximum tire size in "long" flip chip position 53mm, max tire size in "short" flip chip position 45mm

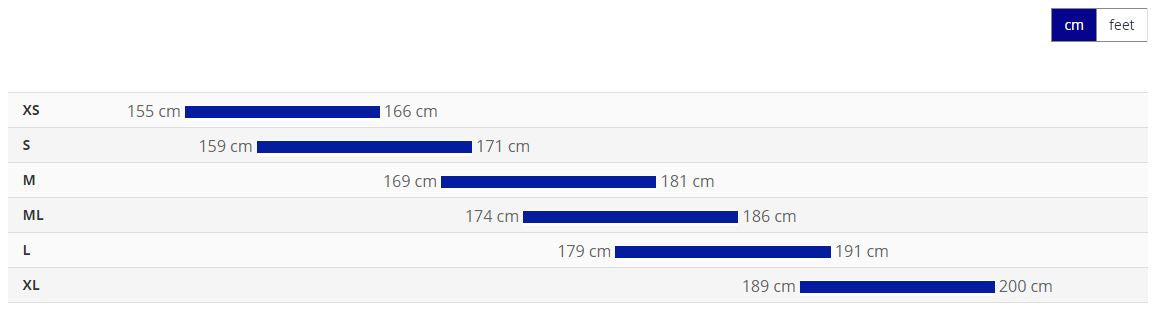

Frame size to rider height –
